A cladding job usually goes off the rails before the first panel goes on. Wrong measurements, uneven battens, rushed cutting, and a wall that is not properly prepared will cost you more time than the actual install. That is why getting the diy insulated cladding installation steps right from the start matters. If you want a clean finish without paying for extra trades, the process needs to be simple, accurate, and repeatable.
Insulated cladding appeals to both DIY renovators and trade installers for the same reason - it cuts out layers of work. You are not lining a wall, insulating it, then rendering or painting over the top. You are installing a finished surface that already does more than one job. That saves labour, reduces waste, and speeds up the whole project.
Why insulated cladding suits DIY projects
Not every wall product is realistic for a homeowner or handyman to install. Some systems need specialist tools, licensed trades, or a lot of finishing work after the sheets are fixed. Insulated cladding is different because the product is designed to go up fast and look finished straight away.
That does not mean every project is foolproof. You still need sound framing, proper alignment, and careful handling of the panels. But if you are working with pre-finished insulated panels that are cut to size, the job becomes far more manageable than traditional render systems or multi-stage wall finishes.
For many renovators, the biggest advantage is control. You can plan the wall area, organise your materials, and install at your own pace without waiting on painters, renderers, or extra fixers to complete the look.
What to check before you start
Before you unpack anything, make sure the wall or surface behind the cladding is suitable. The substrate needs to be structurally sound, dry, and reasonably true. If you are fixing over an uneven surface, the finished wall will show it. Insulated panels can hide minor imperfections, but they will not correct major waves, loose framing, or water damage.
You also need to confirm your fixing method. Some installations go straight onto battens or framing, while others may suit direct fixing depending on the wall type and product specification. If the wall is external, think about moisture management as well. Flashings, trims, and sealing details matter just as much as the panel face.
At this stage, it pays to check panel direction, corner details, joins, and where windows, doors, or service penetrations will sit. A rushed layout can leave you with awkward narrow strips at the end of a run or visible joints in the wrong place.
Tools and materials for DIY insulated cladding installation steps
You do not need a truckload of gear, but you do need the right basics. Most jobs call for a tape measure, spirit level or laser, drill or driver, appropriate fixings, sealant where required, saw or cutting tool suited to the panel, and the correct trims and flashings.
Handling matters too. Keep panels stored flat and protected before installation. If they are pre-finished, avoid dragging them across each other or leaving them exposed where they can pick up scratches, dust, or site damage. A finished panel saves you work later, but only if you keep the finish clean during the install.

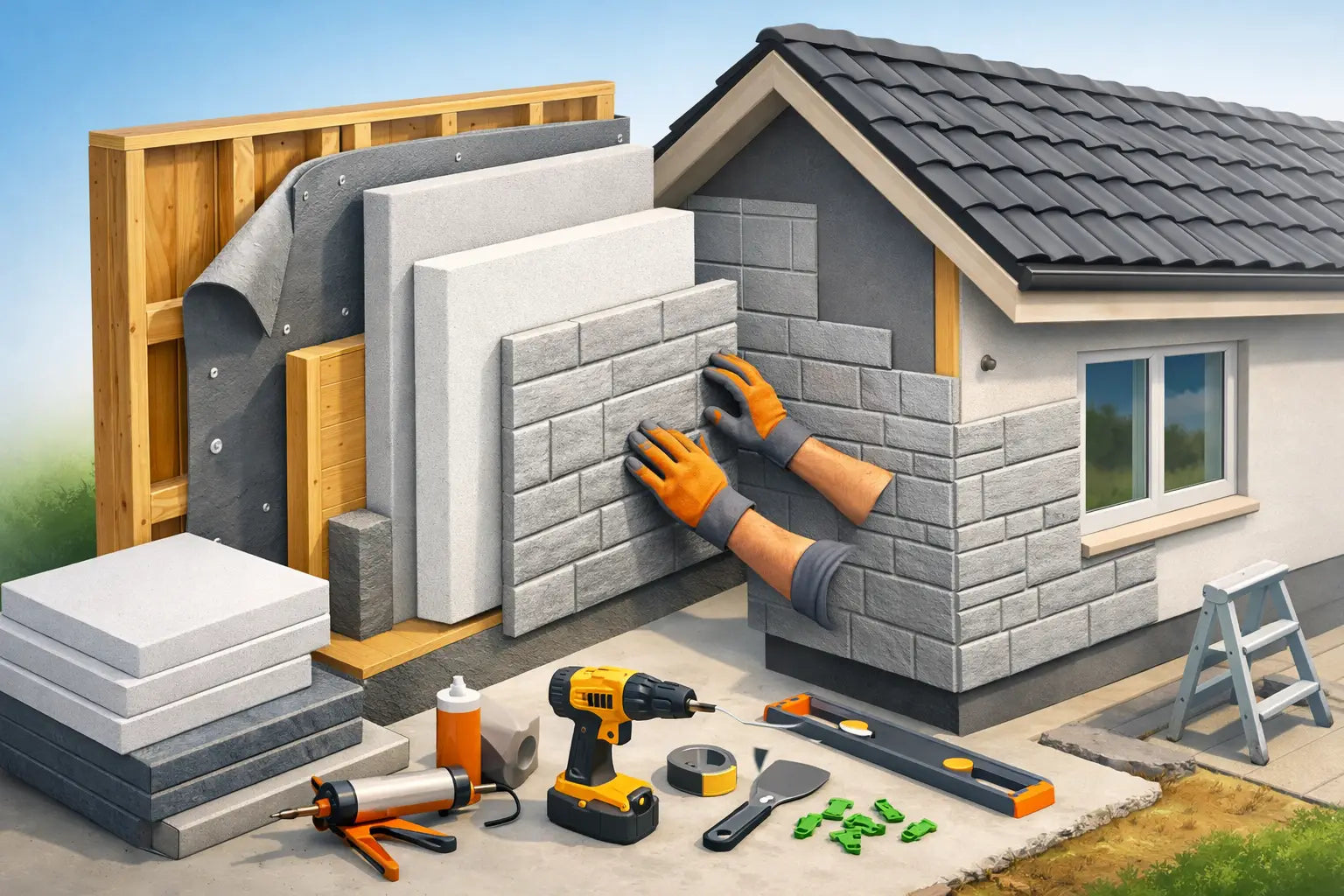

DIY insulated cladding installation steps
1. Measure the wall properly
Start with accurate measurements of the full wall area, then break down openings and edges. Measure height and width in more than one spot, especially in older homes where walls are rarely perfect. If the building is out of square, you want to know early, not halfway through the install.
This is also where custom cut-to-size supply can make a real difference. Less site cutting usually means less waste, a cleaner finish, and a faster install.
2. Prepare the surface and set out your lines
Once the wall is confirmed sound, mark your starting line carefully. Your first panel controls the rest of the run. If it starts off level and plumb, the job stays under control. If it does not, every panel after that becomes a correction exercise.
If battens are needed, install them straight and evenly spaced to suit the panel system. Check for plumb and level as you go. This is not the part to rush. A neat panel finish depends on what is behind it.
3. Fit base trims, starter trims, and corners
Before the main panels go up, install the relevant trims. These create your clean starting point and help manage edges, joins, and weather protection. Internal corners, external corners, base channels, and window trims should all be considered as part of the system, not as afterthoughts.
Good trim work makes the wall look professional. Poor trim work makes even quality panels look second-rate.
4. Cut panels only where needed
If your panels are supplied to size, this step is minimal. If not, measure each cut carefully and allow for trim engagement and joint spacing. Use the recommended cutting method for the product so you do not damage the finish or crush the insulated core.
The practical rule is simple - measure twice, cut once, and support the panel properly while cutting. A rushed cut near a window or corner is usually the one you notice forever.
5. Fix the first panel in place
Position the first panel against your set-out line and secure it with the correct fixings. Follow the recommended fixing points and spacing for the panel type. Over-fixing can damage the face or distort the panel. Under-fixing can lead to movement or poor alignment.
Keep checking level and plumb. The first panel is your reference point for the rest of the wall, so get it right before moving on.
6. Interlock and continue panel by panel
Most insulated cladding systems are designed so panels join neatly with each other. Slide or lock the next panel into place, check alignment, then fix it off. Repeat the same process across the wall.
Work steadily rather than quickly. Speed comes from consistency, not from skipping checks. On a long run, stop now and then to confirm the face is staying true and the joints remain even.
7. Finish around openings and edges
Windows, doors, meter boxes, and other penetrations need tidy cuts and the correct trim detail. This is where many DIY jobs start to look rough. Take your time and dry-fit where possible before fixing the final pieces.
Seal where required by the product specification, especially on external applications. A neat edge detail does more than improve the look. It helps protect the wall assembly from water entry and premature wear.
8. Check the finished wall and clean down
Once the last panel is installed, inspect the full run. Check joints, fixings, trims, corners, and sealant lines. Remove any protective film if applicable and clean the surface according to the finish requirements.
Do not leave metal swarf, dust, or site debris sitting on the face. On pre-finished cladding, basic post-install care helps preserve the final appearance.
Common mistakes that slow the job down
Most delays come from poor planning rather than difficult installation. Starting without confirming panel layout is a common one. So is assuming every wall is straight. Another frequent issue is using the wrong fasteners or spacing fixings incorrectly, which can affect both finish and performance.
Cutting too many panels in advance can also backfire. It sounds faster, but if one opening is slightly out or a trim changes position, you can end up with waste. On balance, it is usually better to cut in sequence unless the wall is very straightforward.
The other mistake is underestimating trims. Panels get most of the attention, but corners, starts, stops, and openings are what make the whole job look complete.
When DIY makes sense and when it does not
For a straight wall, shed conversion, garage interior, facade upgrade, or small renovation, DIY installation can be a smart way to save on labour and still get a professional-looking result. If the system is simple, the panels are pre-finished, and the sizes are well planned, the job is well within reach for a capable renovator or handyman.
If the wall is heavily out of square, the building has moisture issues, or the detailing is complex around multiple openings and levels, it may be worth bringing in an experienced installer. DIY works best when the product simplifies the process and the site conditions are predictable.
That is exactly why ready-to-install insulated panels have become a practical option for both trade and retail buyers. They cut out steps, reduce reliance on specialist trades, and give you a finished wall sooner.
A good cladding job does not need to be complicated. It needs a clear layout, the right fixings, careful handling, and a system designed to save time. Get those parts right, and the wall goes up faster, looks better, and stays off your to-do list for a long time.
